XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts

Guangzhou Bulldog Mechanical Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts from wholesalers

    Buy cheap XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts from wholesalers
    • Buy cheap XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts from wholesalers
    • Buy cheap XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts from wholesalers
    • Buy cheap XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts from wholesalers
    • Buy cheap XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts from wholesalers
    • Buy cheap XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts from wholesalers

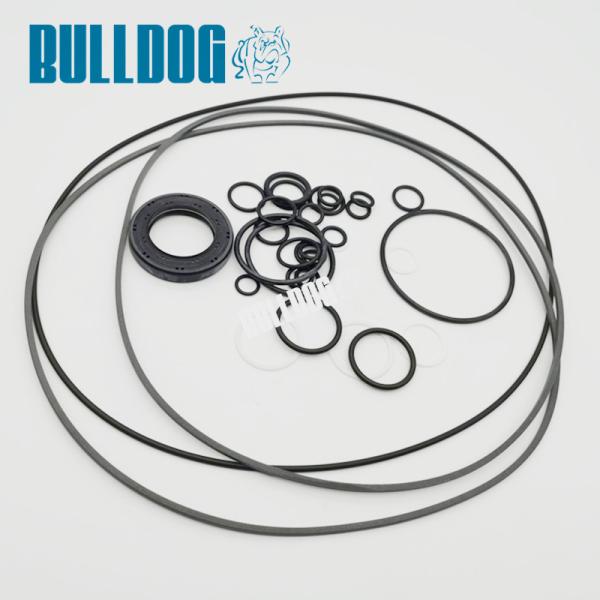

    XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts

    Ask Lasest Price
    Brand Name : BULLDOG,NICEPARTS
    Model Number : Hyundai R360LC-7,R370LC-7 Travel motor seal kit
    Price : Consultation by letter
    Payment Terms : T/T, Western Union, MoneyGram,Paypal,Alipay
    Supply Ability : 100set
    Delivery Time : 3-10 Days After Payment received
    • Product Details
    • Company Profile

    XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts

    XJBN-00514 Travel Motor Seal Kit For Hyundai Walking Motor R360LC-7,R370LC-7 Hydraulic Seal Kit


    Model:Hyundai XJBN-00514 Travel motor seal kit
    Part number:XJBN-00514
    Motor number:31NA-40010
    For:Hyundai R360LC-7,R370LC-7
    Material:PU+NBR+PTFE
    CertifiCATEEion:IOS 9001
    Packaging Details: bag or box +carton
    Delivery Time:2-5days upon payments confirmed
    Brand:Bulldog
    Payment Terms:T/T, Western Union, MoneyGram, Paypal, Alipay
    Delivery method:DHL,FedEx,UPS,etc.
    Supply Ability:50
    MOQ:1set


    Parts list

    NO.Part numbernamequantity
    *31NA-40010Travel Motor[T]1
    *-1XJBN-00519. Travel Motor Unit1
    022XJBN-00513.. Spool-C/Balance1
    101XJBN-00512.. Shaft-Drive1
    102XJBN-00511.. Bearing-Roller1
    103XJBN-00510.. Bearing-Needle1
    106XJBN-00509.. Spacer-Bearing1
    107XJBN-00600.. Ring-Snap1
    NS111XJBN-00507.. Block-Cylinder1
    113XJBN-00506.. Bushing-Spherical1
    114XJBN-00022.. Spring-Cylinder9
    116XJBN-00368.. Spacer1
    NS121XJBN-00504.. Piston9
    NS122XJBN-00503.. Shoe9
    123XJBN-00020.. Plate-Set1
    NS131XJBN-00638.. Plate-Valve1
    161XJBN-00403.. O-Ring2
    162XJBN-00397.. Ring-Back Up2
    201XJBN-00502.. Plate-Swash1
    202XJBN-00501.. Supprot1
    NS272XJBN-00500.. Casing1
    NS303XJBN-00499.. Casing-Valve1
    304XJBN-00498.. Cover-Seal1
    350XJBN-00497.. Valve-Relief2
    361XJBN-00496.. Washer2
    362XJBN-00495.. Spring-C/Balance2
    364XJBN-00494.. Cover-C/Balance2
    K365XJBN-00493.. O-Ring2
    366XJBN-00492.. Bolt-Socket8
    401XJBN-00491.. Bolt-Socket8
    402XJBN-00490.. Bolt-Socket4
    435XJBN-00489.. Ring-Snap1
    S451XJBN-00053.. Pin-21
    S452XJBN-00488.. Pin-12
    461XJBN-00032.. Plug10
    464XJBN-00409.. Plug4
    K471XJBN-00286.. O-Ring1
    K472XJBN-00486.. O-Ring1
    K485XJBN-00097.. O-Ring4
    K491XJBN-00485.. Seal-Oil1
    501XJBN-00484.. Piston-Tilting1
    502XJBN-00483.. Piston-Tilting1
    503XJBN-00482.. Stopper1
    504XJBN-00481.. Stopper-S1
    505XJBN-00480.. Rod-Tilting1
    506XJBN-00479.. Screw2
    507XJBN-00478.. Nut2
    K508XJBN-00477.. O-Ring1
    K509XJBN-00283.. O-Ring2
    K510XJBN-00398.. Ring-Back Up1
    K511XJBN-00475.. O-Ring1
    K512XJBN-00474.. Ring-Back Up1
    531XJBN-00473.. Spool-Tilting1
    533XJBN-00472.. Spring-Tilting1
    541XJBN-00471.. Seat2
    542XJBN-00470.. Stopper2
    543XJBN-00359.. Ball-Steel2
    545XJBN-00469.. Orifice1
    546XJBN-00468.. Orifice2
    K547XJBN-00231.. O-Ring3
    567XJBN-00356.. Plug7
    K568XJBN-00362.. O-Ring7
    571XJBN-00639.. Plug1
    K572XJBN-00233.. O-Ring1
    702XJBN-00640.. Piston-Brake1
    705XJBN-00466.. Spring-Brake10
    K707XJBN-00465.. Ring 252-Piston1
    K708XJBN-00464.. Ring 278-Piston1
    S709XJBN-00463.. Pin-Center4
    710XJBN-00462.. Guide-Spring1
    711XJBN-00641.. Spool1
    712XJBN-00460.. Bushing1
    713XJBN-00459.. Spring1
    714XJBN-00458.. Plug1
    741XJBN-00457.. Plate-Separator1
    742XJBN-00456.. Plate-Friction2
    801XJBN-00156.. Name Plate1
    802XJBN-00341.. Pin2
    *-2@. T/Reduction Gear[T]1
    KXJBN-00514Seal Kit[T]1
    011XJBN-00515Valve Casing Sub A...[T]1
    012XJBN-00516Casing Sub Assy[T]1
    013XJBN-00517Cylinder Sub Assy[T]1
    014XJBN-00518Piston Sub Assy[T]1

    Parts exploded view


    More service models

    New Komatsu Style 707-99-68780 Hydraulic Cylinder Seal Kit.
    This is a New Seal Kit that fits the following Models and Cylinder part numbers.
    Model Num.AppliCATEEionCylinderRod Size (in)Bore (in)Serial Num.Part #
    PC400-7, PC400LC-7ARM707-01-0F690120 mm185 mm50001-50146KOM-707-99-68780
    PC400-7, PC400LC-7ARM707-01-0F691120 mm185 mm50147-KOM-707-99-68780
    PC400-7, PC400LC-7ARM707-01-0F741120 mm185 mm50001-KOM-707-99-68780
    PC400-7, PC400LC-7ARM707-01-0F810120 mm185 mm50001-KOM-707-99-68780
    PC400-7, PC400LC-7ARM707-01-0F840120 mm185 mm50001-KOM-707-99-68780
    PC400-7, PC400LC-7ARM707-01-0G370120 mm185 mm50001-KOM-707-99-68780
    PC400-7E0, PC400LC-7E0ARM707-01-0F691120 mm185 mm60001-KOM-707-99-68780
    PC400-7E0, PC400LC-7E0ARM707-01-0F691120 mm185 mmA87001-KOM-707-99-68780
    PC400-7E0, PC400LC-7E0ARM707-01-0F741120 mm185 mm60001-KOM-707-99-68780
    PC400-7E0, PC400LC-7E0ARM707-01-0F741120 mm185 mmA87001-KOM-707-99-68780
    PC400-7E0, PC400LC-7E0ARM707-01-0F810120 mm185 mm60001-KOM-707-99-68780
    PC400-7E0, PC400LC-7E0ARM707-01-0G370120 mm185 mm60001-KOM-707-99-68780
    PC400LC-7LARM707-01-0F690120 mm185 mmA86001-KOM-707-99-68780
    PC450-7KARM707-01-0F691120 mm185 mmK40001-KOM-707-99-68780
    PC450-7KARM (2.4M Arm)707-01-0F741120 mm185 mmK40001-KOM-707-99-68780


    Company warehouse

    XJBN-00514 Travel Motor Seal Kit Walking Motor R360LC-7 R370LC-7 Hyundai Spare Parts


    FAQ

    1. Q: Are you a manufacturer or trader?
    A: We are both in manufacturer and trader, have more than 10 years
    of industry experience.

    2. Q: Can i make a small order first?
    A: Yes, of course.

    3. Q: If we let the product make a change of the size, can you offer the
    seal kit for this size?
    A: Yes, just send the machine model, part number and the change
    of size to us, we can make it.

    4. Q: Have you support the OEM or not?

    A: Sure, we support the OEM,BULLDOG or as required.

    5. Q: How can i pay the goods?

    A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc

    6. Q: How to ship the products?

    A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.

    7. Q: What’s the delivery time?

    A: The goods can be shipped at 2-5 working days after receiving payment.
